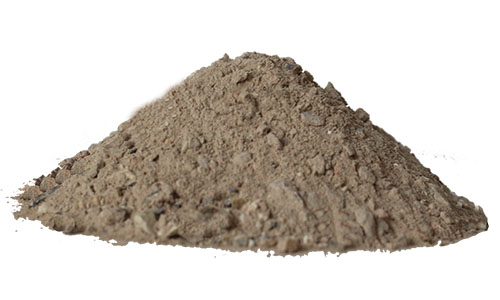

High Strength High Aluminum Castable Introduction
High strength high alumina castable is synthesized by a high ratio of high alumina aggregate, powder and binder and admixture. It has high temperature performance, high tolerance, wide temperature, no reduction, and wear resistance. In depth application in hardware, smelting, chemical, non ferrous metals and other industries, especially in the steel industry, important applications in the front kiln mouth of the rotary kiln, disintegration furnace, kiln hood and other parts.
High Strength High Aluminum Castable Feature
High strength high alumina castables are resistant to penetration, erosion, impact, abrasion and mechanical properties.
High temperature performance, high tolerance, wide temperature, no reduction, wear resistance.
High strength high alumina castable as the least wear loss, high strength, arbitrary shape control, strong integrity, simple construction and good construction performance. Due to the addition of high molecular polymer, the base concrete is firmly bonded.
High Strength High Aluminum Castable Specification
| Item |
HT-1 |
HT-2 |
HT-3 |
| Al2o3 |
75 |
75 |
75 |
| Refractoriness ℃ |
1730 |
1750 |
1770 |
| Line change rate after burning |
0.4 |
0.2 |
0.4 |
| Compressive strength CCS Mpa |
110℃*24h |
60 |
80 |
70 |
| 1100℃*4h |
70 |
90 |
95 |
| Flexural strength |
110℃*24h |
8 |
10 |
12 |
| 1100℃*4h |
9 |
11 |
12 |
| Cement material properties |
Hydraulic |
Thermosetting |
Pneumatic |
| Maximum use temperature ℃ |
1300 |
1400 |
1400 |
Performance characteristics |
High modulus of release |
Wear resistant and thermal shock resistant |
Long construction and long life |
| Application area |
Folding flame angle, wind chamber, economizer guard, fire door and other departments |
High Strength High Alumina Castable Application
High strength high alumina castable used in hardware, smelting, chemical, non ferrous metals and other industries, especially in the steel industry, important applications in the front kiln mouth, disintegration furnace, kiln hood and other parts of the rotary kiln.
High strength high alumina castables are widely used in power station, boiler, melting furnace, heating furnace, soaking furnace, heat treatment furnace and induction furnace.
High strength high alumina widely used in power station boilers and other thermal kiln front and rear arches, furnace roof, tail furnace wall and other parts.
