High Alumina Chequer Firebrick

  • High Alumina Chequer Firebrick

1.High mechanical strength.

2.Good corrosion resistance

3.Good thermal shock resistance.

4. High-temperature creep rate is low.

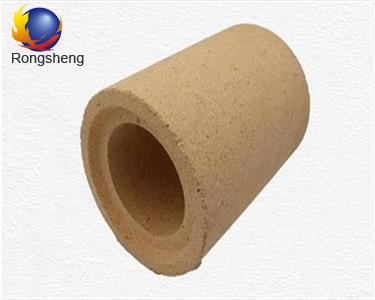

High Alumina Chequer Firebrick Introduction

High alumina chequer firebrick is a heat carrying heat storage body with excellent thermal properties, strong heat exchange capacity, large heat storage area, smooth ventilation and low resistance. Refractory high alumina chequer fire brick is a kind of heat transfer medium, firebrick is mainly used in the upper part of the regenerator of hot blast stove to store heat storage. There are a plurality of through holes parallel to the side surfaces, positioning projections and positioning grooves on the two parallel surfaces.

High Alumina Chequer Firebrick Features & Advantages

1.High alumina chequer refractory brick have high refractoriness.

2. High alumina chequer Brick have good spalling resistance and wear resistance.

3. Refractory high alumina chequer brick have good corrosion resistance.

4.High alumina chequer refractory brick have good thermal shock resistance.

5. Checker brick have high mechanical strength.

6. Refractory checker bricks have low high temperature creep rate.

High Alumina Chequer Firebrick Specification

High Alumina Chequer Firebrick Physical and Chemical Index:
Item Properties
RS-80 RS-75 RS-65 RS-55 RS-48
Al2O3 (%) 80 ≥75 ≥65 ≥55 ≥48
Refractoriness  (°C ) ≥1790 ≥1790 ≥1790 ≥1770 ≥1750
Bulk density  (g/cm3) 2.65 2.5 2.45 2.4 2.3
Softening temperature under load  (°C ) 1530 ≥1520 ≥1500 ≥1470 ≥1420
Linear changes on reheating (%) 1500°CX2H 0.1 0.1 0.1 0.1 0.1
1450°CX2H -0.4 -0.4 -0.4 -0.4 -0.4
Apparent porosity (%) 22 ≤23 ≤23 ≤22 ≤22
Cold crushing strength (Mpa) 55 ≥50 ≥45 ≥40 ≥35
Application steel furnace, glass furnace, sodium silicate furnace, ceramic shuttle kiln, cement rotary kiln, blast furnace, electric furnace, blast furnace and reverberatory furnace.

High Alumina Chequer Firebrick Applications

1. Steel furnaces

2. Iron making furnaces

3. Glass kiln

Refractory Brick Manufacture in Rongsheng Kiln Refractory Factory

Zhengzhou Rongsheng Kiln Refractory Co., Ltd, located in the beautiful Xinmi CIty,Henan Province with rich refractory materials. Established in the early 90s of twenty century, with continuous innovation and development, now we are a comprehensive enterprise producing refractory in metallurgy, electirc power, building materials, chemical industry, glass, non-ferrous metals, ect. There are more than 180 staffs, including 20 professional technicians. We have 3 automatic production lines for shaped, unshaped and insulating refractory materials.
