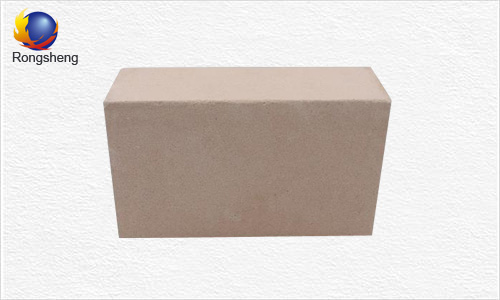

Light Clay Bricks

  • Light Clay Bricks


1. Light weight

2. Small bulk density

3. Low thermal conductivity
Light Clay Bricks Introduction

Light clay brick as a kind of hot sales refractory bricks for furnace application in Rongsheng factory manufacturing with light weight, small bulk density, low thermal conductivity light refractory clay insulation bricks. Light fire clay bricks can be processed into various shaped products according to the customer's design needs. Light clay bricks mainly used in thermal boilers, glass kiln, cement kiln, fertilizer gasifier, blast furnace, hot blast stove, coking furnace, electric furnace, casting and pouring steel . There are high quality light weight fire clay insulation bricks for sale cheap in RS Company can provide standard insulation clay bricks size specification and category as well as competitive price & high-grade quality insulation clay bricks products,other specification and size of high refractory light clay bricks according to customer requirements,welcome to contact us or email us for free quote or price list.

Light Clay Bricks Definition

1.Light clay brick series refers to light refractory products containing AL2O3 (30%~46%)light clay bricks is mainly made of clay clinker or light clinker and plastic clay.  Light weight fire clay insulation bricks is usually produced by combustible materials. Light clay bricks can also be chemically and foamed. A porous structure is formed. The ingredients are mixed with water to form a plastic mud or slurry, Light clay brick is extruded or cast, dried and fired in an oxidizing atmosphere at 1250-1350 °C.

2.Lightweight clay bricks are widely used in various industrial furnaces without contact with molten materials and non-erosion gases. The temperature is 1200-1400 °C.


Light Clay Bricks Introduction Features

1. Low thermal conductivity

2. High compressive strength

3. Good thermal shock resistance

4. Good thermal insulation performance


Light Clay Bricks Advantage

1.Light Weight Fire Clay Insulation Bricks Economical

Light clay fire bricks can reduce the cost of the foundation, reduce the cross section of the frame, and save the reinforced concrete can significantly save the overall cost of the building. The use of lightweight fire bricks is better than the use of solid clay bricks, the overall cost can be reduced by more than 5%.

2.Light Weight Fire Clay Insulation Bricks Practicality

The use of insulation fire clay bricks can increase the use of area, because of the aerated concrete insulation, insulation effect is good, in the hot summer, the indoor temperature is 2-3 ℃lower than the use of solid light fire clay bricks, using air conditioning, lowering power consumption.

3.Light Weight Fire Clay Insulation Bricks Construction

Light fire clay brick has good machinability, the construction is convenient and simple. Due to the large size and light weight, refractory light weight bricks can reduce labor intensity, improve construction efficiency and shorten construction period.

4.Light Weight Fire Clay Insulation Bricks Have Light Weight

Light weight fire clay insulation bricks have a dry capacity of only 500-700Kg/m*3, Insulating fire brick is 1/4 of ordinary concrete, 1/3 of clay, and 1/2 of hollow block. Because clay bricks bulk density is smaller than water. Commonly known as aerated concrete floating on the water, the use of this product in the building can reduce the building's own weight and greatly reduce the overall cost of the building.

5.Light Weight Fire Clay Insulation Bricks Have Heat Preservation &Heat Insulation

Due to the aerated concrete in the manufacturing process, the formation of tiny pores inside, these pores form an air layer in the material, greatly improving the thermal insulation effect, so that the thermal conductivity of aerated concrete is 0.11- 0.16W/MK. The insulation firebrick effect is 5 times that of fire clay bricks and 10 times that of ordinary concrete.

6.Light Weight Fire Clay Insulation Bricks have Sound Absorption and Sound Insulation

The porous structure of aerated concrete makes it soundproof and soundproof, insulation light clay bricks can create a high airtight indoor space for you. Provide a quiet and comfortable living environment.

7.Light Weight Fire Clay Insulation Bricks Have Small Shrinkage Value

Due to the use of river sand and pulverized coal as a siliceous material, insulation fire clay shrinkage value is only 0.1--0.5mm / m, the shrinkage value is small and good materials to ensure that your wall will not crack.

8.Light Weight Fire Clay Insulation Bricks Impermeability

The pore structure of this light clay fire bricks makes the capillary action poor, the water absorption and humidity are slow, the time required for the same volume to absorb water to saturation is 5 times that of light fire clay brick.

Light Clay Bricks Using Precautions

Light refractory bricks have high strength, high temperature reburning shrinkage and low compressive strength, poor slag resistance, poor heat resistance and cannot be in direct contact with glass solutions or flames.


Light Clay Bricks Specification


Index

Light  Clay Bricks
RSQN-0.6 RSQN-0.8 RSQN-1.0
Density Bulk g/cm3 0.6 0.8 1.0
Cold Crushing Strength Mpa 2.0 3.0 4.0
Refractoriness 1100 1100 1100
Thermal Conductivity (900℃±25)(W/m·k) 0.25 0.30 0.50

Light Clay Bricks Application

1.Lightweight clay insulation bricks can be used as thermal insulation for hot surface refractories or other refractory materials for melting furnaces, ignition kiln, flue, refining units, heating units, regenerators, gas furnaces and pipes, soaking furnaces , annealing furnaces, reaction chambers and other industrial thermal processing equipment.

2.Lightweight clay brick mainly acts on the thermal insulation material of industrial kiln,light  fire bricks can reduce heat loss of kiln, save energy and reduce the quality of thermal equipment.

Refractory light clay bricks mainly used in thermal boilers, glass kiln, cement kiln, fertilizer gasifier, blast furnace, hot blast stove, coking furnace, electric furnace, casting and pouring steel brick.


Light Clay Bricks Classification

Three Types of Light Clay Fire Bricks

1.Ordinary insulation bricks, the use temperature is below 1000 °C, mainly diatomite bricks, expanded perlite bricks. mostly used as thermal insulation layer of thermal equipment, not directly in contact with flame.

2.Refractory insulation clay bricks, used at temperatures between 1200 ° C and 1500 ° C, refractory insulation fire bricks can be exposed to flame. There are mainly light clay bricks, light silica bricks and light high alumina bricks.

The high temperature kiln uses light insulation refractory bricks, the use temperature is above 1500 ℃, light insulation refractory bricks can be directly used as the lining of high temperature kiln, mainly light corundum brick, corundum mullite lightweight thermal insulation brick, alumina Hollow ball bricks and products and zirconia hollow ball bricks and refractory bricks products.

Light Clay Bricks Supplier in RS Factory

1.RongSheng refractory factory have rich refractory raw materials and 20 years experienced in the refractory bricks manufacturing. Rongsheng fire bricks factory can provide specification and category as well as competitive price & high-grade quality bricks products.

2. Rongsheng firebricks manufacturer continues to innovate and develop new products, The lightweight clay brick has light weight and small bulk density, light weight clay fire brick is rich in raw materials and cheaper than refractory bricks, Light weight fire clay insulation bricks is an ideal heat insulating material.
